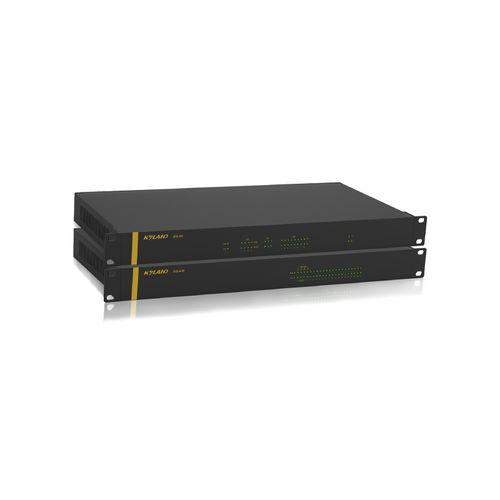

Communication gateway DG-A8

industrialEthernetRS-232

As the 1U, 19 inch standard rack-mount data concentrating unit for system,DGW-AX series are designed in conformity with the IEC 61850 standards. It can be deployed to be an intelligent unit to collect data by all its RS232/RS485 serial ports and Ethernet ports. By importing any pre-specified IEC 61850 SCL(.icd/.cid) template file and after mapping the data to internal VMD model with the configuration tool - ICE, the unit can be viewed just as the standard IEC 61850 IED from the master station. With powerful data communication and process function, high reliability, low power consumption, flexible and easy installation advantages, DGW-AX series are the ideal intelligent device choice for any kinds of system integrated solutions. Key Features Special designing based on ARM Cortex-A8 architecture High performance yet ultra low power consumption Easy IEC 61850 SCL(CID/ICD) import and configuration process Configurable MMS（IEC 61850-8-1）server & client application Support GOOSE publish and subscribe Built-in SoftPLC calculating task Configurable hardware watchdog Full functional NTP for time synchronization Support IRIG-B DC time synchronization Dual mode of RS232/RS485 isolated serial ports Remote diagnosis or maintenance by network Compliant to IEC 61850-3, IEEE 1613 standards Support protocol IEC-101/103/104,Modbus/RTU,Modbus/TCP
