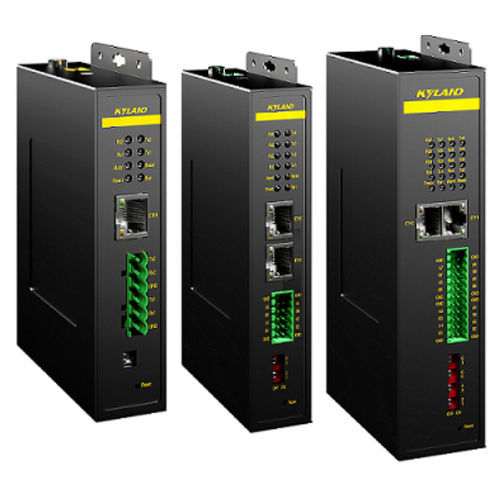

Communication gateway KGW series

industrialTCPEthernet

KGW-A series is a new generation of economical intelligent protocol gateway products. It can be deployed in industrial networks as an intelligent communication node. into the ethernet network. KGW-A supports TCP, UDP, HTTP, ARP, ICMP, LLDP, SNMP, FTP, TFTP，Syslog，SMTP，DNS, DHCP and several network protocols; Users can manage and configure the device through the web or a specified configuration tool based on the Windows platform. Key Features Provide 1 or 2 Ethernet ports; 2, 4, 8 RS-232/485 serial ports Support dual network port bridging and cascading, dual network port can be configured with different network segment. Support card rail, wall-mounted two installation methods Support socket operation mode, including TCP Server, TCP Client and UDP, etc. Support data transparent transmission mode and conversion of various common protocols Support Web and KyPMT two device access configuration forms Support alarm and one-key recovery function Serial port supports 2kV isolation protection The whole machine has IP40 protection grade, EMC3 electromagnetic protection Metal body, wide temperature operation (-40℃~+75℃) CE, FCC
