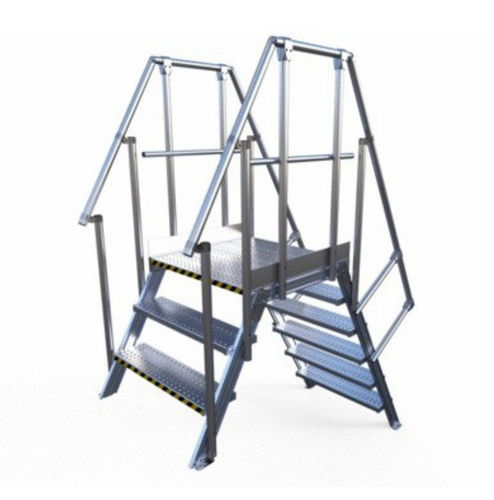

Work platform EEF22700602S

assembly

The roof crossing walkways allows the safe passing of all obstacles on technical terraces such as ducts, piping systems, waterproofing systems, etc. Delivered fitted as standard with guardrails (if necessary, the guardrails can be dismantled). Delivered as a pre-assembled kit, the handling of the walkway to the roof is facilitated. Fitted entirely by hardware, the equipment is quick to assemble. The platform decking in LEEVELGRIP, an exclusive anti-slip and draining coating (Grooved aluminium or grating decking on request). 60° tilt for occasional use As standard, high-resistance grooved LEEVELGRIP steps and platform Grooved aluminium planking or grating upon request Platform lengths available: from 600 to 3000 mm (24" à 118") . beyond this value, please contacts us Standard ground fastening by 4 fastening corner pieces (bore diameter - 11 mm (0,4")) Available widths : 600, 800, 1000 mm (24", 32", 39") To know the overall width of the platform in question, add 141 mm (6") On a 60° tilt, the step depth is 200 mm (8") and the height between steps 250 mm (10") ; in standard version On a 45° tilt, the step depth is 270 mm (11") and the height between steps 200 mm (8") ; in standard version Platform lad capacity - 200 kg/m² (400 lb/ft²) Step load capacity - 150 kg (330 lb)
