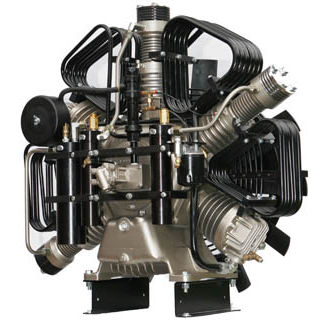

Piston compressor G5xx-x seriesbreathing airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- breathing air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Other characteristics
- low-noise, high-efficiency, multi-stage
- Pressure
414 bar, 517 bar
(6,004.56 psi, 7,498.45 psi)- Flow
496 l/min, 510 l/min, 665 l/min, 680 l/min, 821 l/min
(131.03 us gal/min, 134.73 us gal/min, 175.67 us gal/min, 179.64 us gal/min, 216.89 us gal/min)- Power
11 kW, 15 kW, 18.5 kW
(14.96 hp, 20.39 hp, 25.15 hp)
Description
Five StagesRadial layout for reduced vibration and crank shaft loadingSpin-on Type Oil FilterConnecting rods with needle roller bearingsStainless steel valve assemblies on all stagesLatest technology in valve and ring designRelief Valves on 1st, 2nd, 3rd & 4th StageIntercoolers on 1st, 2nd, 3rd & 4th, after cooler on 5th stagePressurized oil lubrication systemCast Iron Block and CylindersWater separators on 2nd, 3rd & 4th stagesDesigned and built in the USA
