3-axis CNC machining center VMC series
verticalBT 4024 tools

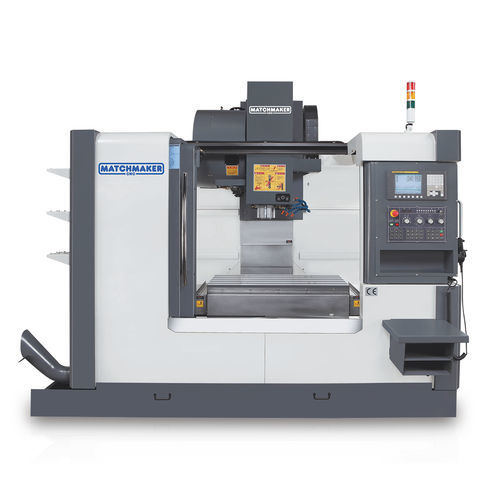

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BT 40
Number of tool stations
24 tools, 16 tools
Associated functions
milling, tapping, cutting, drilling
Applications
medical, for the aerospace industry
Other characteristics
high-speed, high-precision
X travel

610 mm, 860 mm, 1,020 mm, 1,100 mm
(24.02 in, 33.86 in, 40.16 in, 43.31 in)

Y travel

460 mm, 560 mm
(18.11 in, 22.05 in)

Z travel

480 mm, 600 mm
(18.9 in, 23.62 in)

Rotational speed

8,000 rpm, 10,000 rpm, 12,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)

Power

5.5 kW, 7.5 kW, 11 kW, 15 kW, 18 kW
(7.48 hp, 10.2 hp, 14.96 hp, 20.39 hp, 24.47 hp)

Work feed X-axis

Max.: 10,000 mm/min
(7 in/s)

Min.: 1 mm/min
(0 in/s)

Work feed Y-axis

Max.: 10,000 mm/min
(7 in/s)

Min.: 1 mm/min
(0 in/s)

Work feed Z-axis

Max.: 10,000 mm/min
(7 in/s)

Min.: 1 mm/min
(0 in/s)

Table load capacity

300 kg, 600 kg, 800 kg, 1,000 kg
(661 lb, 1,323 lb, 1,764 lb, 2,205 lb)

Tool weight (max)

7 kg
(15.4 lb)

Weight

4,000 kg, 5,800 kg, 6,200 kg, 6,500 kg
(8,818.49 lb, 12,786.81 lb, 13,668.66 lb, 14,330.05 lb)

Description

The spindle is assembled by highly skilled technicians, each spindle is tested to ensure the optimum condition. OUTLINE The space saving quality machine features operator friendly lift-up-type side windows for easy access, extra wide front doors for large components, sheet metal guarding designed for efficient chip removal. CONSTRUCTION The new Cyclone VMC series is a high speed machining center that built with Cyclone's renowned features of a rigid structure, high speed motion control, low vibration and high accuracy. The machines are widely applied in aerospace, medical equipment, and other high precision industries for milling, drilling, tapping and various mold making processes. Combined with our experience accumulated over more than 40 years, using the very latest 3D digital design techniques to enhance the mechanical structure so as to achieve the optimum cutting performance.
