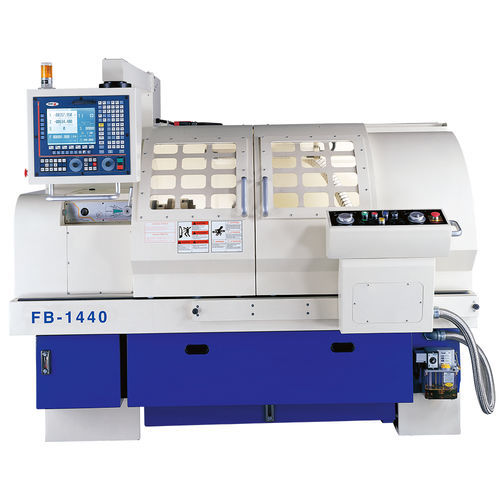

CNC lathe FB-14/16horizontal2-axisflatbed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Structure
- flatbed
- Spindle mount
- D1-6
- Number of tool stations
- 4 tools
- Performance
- powerful, high-speed
- Diameter
180 mm, 230 mm, 360 mm, 410 mm
(7.09 in, 9.06 in, 14.17 in, 16.14 in)- Spindle speed
Max.: 3,000 rpm
(18,849.556 rad.min-1)480 rpm, 481 rpm
(3,015.929 rad.min-1, 3,022.212 rad.min-1)Min.: 25 rpm
(157.08 rad.min-1)- Axe X
205 mm, 216 mm
(8 in, 9 in)- Axe Z
865 mm, 1,375 mm
(34 in, 54 in)- Rapids on X
5 mm/min
(0 in/s)- Rapids on Z
7 m/min
- Nominal power
3.7 kW
(5 hp)- Coolant capacity
30 l
(8 gal)- Overall lenght
2,286 mm, 2,800 mm
(90 in, 110 in)- Overall width
1,800 mm
(71 in)- Overall height
2,230 mm
(88 in)- Weight
Max.: 2,650 kg
(5,842 lb)Min.: 2,000 kg
(4,409 lb)
Description
Intel Pentium PC based processor
DSP Motion Control
8MB DRAM for fast access
Digital AC servo system
Icon based programming
12.1" TFT active matrix color display
8GB (min) hard drive, 1.44 MB floppy disk
Ethernet LAN option
Infinite threading range
Multiple start threading
Constant surface speed (CSS)
Graphical program creation
SO G-Code programs with conversational help
Draw graphics With multiple views
Simple Command Interface (SCI) for manual turning of Radius, Chamfer, Taper, Face, Turn, Arc
Blueprint programming
Extensive canned cycles
Software in 7 languages
Off-line software for PC availabl
Fagor 8040 TC
Powerful industrial high speed CPU for lathe applications.
11" Full-key color/mono LCD
Up to 1Mb of user RAM memory (standard with 256Kb)
Software in 12 languages
Digital servos interface (Fagor DDS is necessary)
A fully optocoupled serial line RS-232C of up to 115,200 baud
DNC
Solid Grapic
