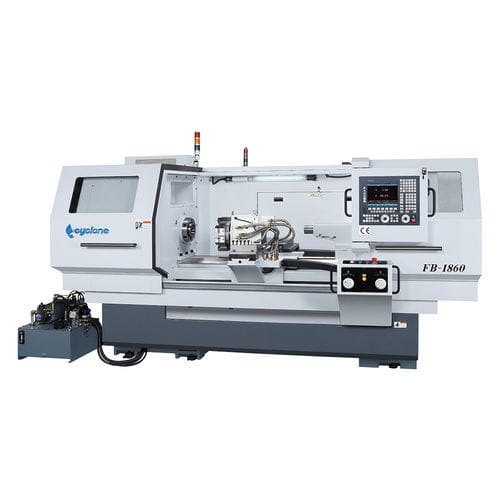

CNC lathe FB-18/21/25horizontal2-axisflatbed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Structure
- flatbed
- Spindle mount
- D1-8, D1-6, A2-11
- Performance
- high-precision
- Diameter
460 mm, 540 mm, 630 mm
(18.11 in, 21.26 in, 24.8 in)- Spindle speed
Min.: 10 rpm
(62.832 rad.min-1)Max.: 3,100 rpm
(19,477.874 rad.min-1)- Axe X
280 mm, 350 mm
(11 in, 14 in)- Axe Z
810 mm, 1,310 mm, 1,810 mm
(32 in, 52 in, 71 in)- Rapids on X
5 m/min
- Rapids on Z
7 m/min
- Nominal power
7.5 ch, 10 ch, 15 ch
(7.5 hp, 10 hp, 15 hp)- Weight
Min.: 2,900 kg
(6,393 lb)Max.: 3,800 kg
(8,378 lb)
Description
The bed and stand are made of one-piece Meehanite cast iron, which is annealed treatment to eliminate internal residual stress and more stable that can be resisted to vibration due to deep cutting.
HEADSTOCK
The spindle and gears used in the headstock are made of CR-MO materials, which has been heat treated to Rockwell HRC-60° with a high precision ground finish.
