- L & W Machine Tools, Inc.

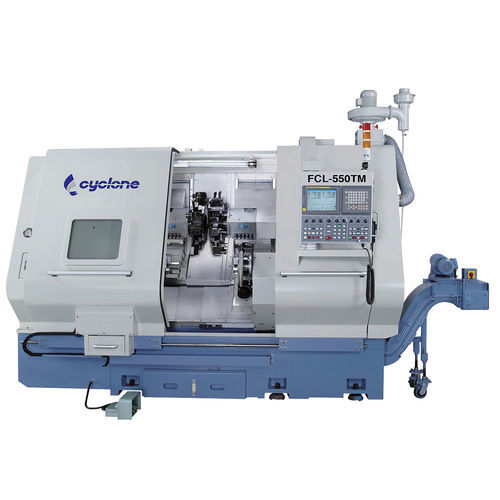

CNC lathe FCL-TMhorizontal5-axismulti-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 5-axis, multi-axis, 7-axis
- Number of spindles
- 2-spindle
- Number of tool stations
- 12 tools
- Turret
- double-turret
- Diameter
440 mm
(17.32 in)- Spindle speed
6,000 rpm
(37,699.112 rad.min-1)- Maximum part length
270 mm, 290 mm, 310 mm
(11 in, 11 in, 12 in)- Bar capacity
45 mm, 51 mm, 65 mm
(2 in, 2 in, 3 in)- Axe X
165 mm, 245 mm, 280 mm
(6 in, 10 in, 11 in)- Axe Z
310 mm, 350 mm, 560 mm
(12 in, 14 in, 22 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
5.5 kW, 7.5 kW, 9 kW, 11 kW, 15 kW
(7.5 hp, 10.2 hp, 12.2 hp, 15 hp, 20.4 hp)- Coolant capacity
100 l
(26 gal)- Overall lenght
4,150 mm
(163 in)- Overall width
2,100 mm
(83 in)- Overall height
2,350 mm
(93 in)- Weight
Max.: 7,980 kg
(17,593 lb)Min.: 7,160 kg
(15,785 lb)
Description
Spindle bore: 56 / 61 / 77 mm
Hydraulic chuck : 6" / 8" / 10"
E axis travel: 265 / 470 / 500 mm
Catalogs
No catalogs are available for this product.
See all of L & W Machine Tools, Inc.‘s catalogsOther L & W Machine Tools, Inc. products
CNC HORIZONTAL LATHE (SLANT BED)
