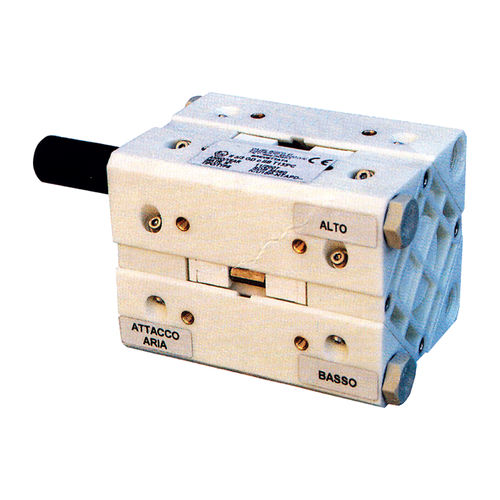

Diaphragm pump CU15waterpneumatic-driveself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Operation
- pneumatic-drive
- Priming
- self-priming
- Domain
- industrial
- Material
- aluminum, EPDM, PVDF, stainless steel, PP, ceramic, plastic
- Flow
Max.: 17 l/min
(4.49092 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
7 bar
(101.526 psi)- Head
Max.: 70 m
(229'07" )Min.: 3 m
(9'10" )
Description
Energy saving
Available PP- PVDF
Available in PP-PVDF-INOX-ALUMINUM
Self-heating
Maximum range from 5 to 900 l/m
Attacks:
Rigid duct
flexible piping
Flanged
Operating Principle
The magnetic pumps are characterized by the absence
connection between the motor and the pump unit.
The rotation of the impeller and
obtained through induction
Magnetic between two magnets which
one coupled to the engine and
the other drowned in the impeller.
This principle ensures
higher reliability,
decreasing totally
losses, facilitating and minimizing interventions
The materials used for the construction of magnetic drive pumps are the source:
• PP for special
plastic material.
• Ceramic (Alumina 99.7%)
for pin and washers.
• Rulon for compasses.
• EPDM and Viton seals for
