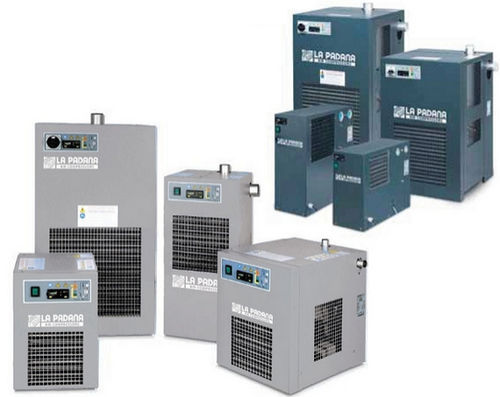

Refrigerated compressed air dryer LPE series

single-stagecompact

AMD-LH dryers achieve excellent performance even in instances of high ambient and high inlet temperatures. The highly efficient and ultra compact heat exchanger is able to operate effectively in ambient temperatures up to 45°C and inlet temperatures of 55°C, ensuring a reduced compressed air pressure drop. AMD-LH dryers are sized to match standard compressor outputs. E. g. a 15 kW (20 HP) air compressor with theoretical output of 2400 l/min at 7 bar matches the AMD-LH 25 rated 2500 l/min. It is therefore unnecessary to select a large model: air compressor - dryer combination is tested and certified by LA PADANA, within operating limits shown on technical features. Operation of the AMD dryer is monitored by DMC15 electronic controller which indicates the DewPoint temperature digitally, controls the condensate drain valve via a timer and the condenser fan via a probe. A hot gas by-pass valve allows the dryer to operate at part load and prevent the evaporator from freezing. The ALU-DRY aluminium Module has a vertical flow layout ensuring the wet compressed air flows down to the automatic drain.
