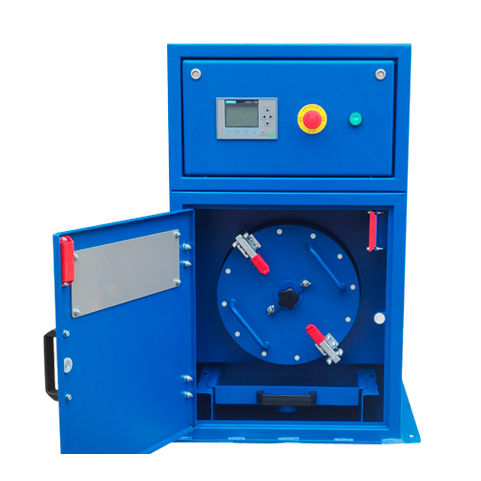

Rotational abrasion tester BAT1001

The Bond Abrasion Tester is a process and laboratory machine, which is designed to determine the abrasion index of a mineral sample to be determined in accordance with F.C. Bond´s abrasion test method. The Bond Abrasion Tester utilizes an electrically driven drum and rotating abrasion paddle. The mineral sample is lifted by a mesh drum liner and dropped on to the steel paddle, which rotates in the same direction. The paddle is made to exacting standards of material and size and two square inches of this is exposed to wear. After running the test, the weight loss of the paddle is noted in grams, this represents the Abrasion Index (Ai) of the material. Ambient temperature 5°C – 40°C Atmospheric humidity 85% RH Dimensions W x D x H 900 x 700 x 1000 mm Max volume of grinding barrel 5000ml Noise emission 70 dB(A) Power supply 230V ± 10% – 50/60Hz Rated power 0,55 KW Recommended charge 400 gr. Acc. To BOND PROTOCOL Weight 184 kgs net / 245 kgs gross
