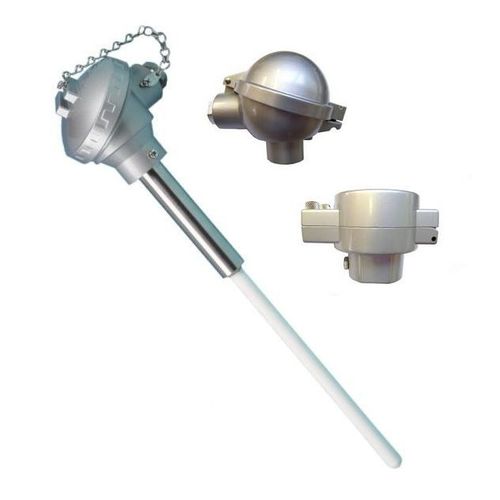

Thermocouple RMT STYLE

high-temperature

Rare metal thermocouple R , S and B assemblies. Rare metal thermocouples are made from conductors containing platinum and rhodium alloys and are suited for measuring high temperatures up to 1700°C. Application Notes: *High temperature platinum temperature sensor *Designed specifically for your application / environment *Will withstand tough industrial use Overview Type - - Rare Metal Thermocouple Temp Sensor to High Temp Temp Range - - 0 to 1700°C Common Sensor Types - - R, S, B Common Sheath Size (mm) - - 6.0, 8.0, 10.0, 12.0, 13.0, 15.0, 17.0, 20.0, 25.0, 28.0 Common Element Diameters (mm) - 0.35, 0.45, 0.5 Shank Material - - 310SS, 466SS, INCONEL 600 Head Options - - ALA, KNE (IP65), BUZ
