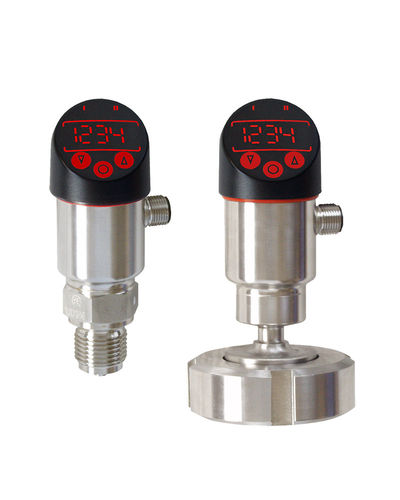

Relative pressure transmitter PASCAL CS membrane4-20 mAdigital
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- membrane
- Output
- 4-20 mA, digital
- Material
- stainless steel
- Protection level
- IP65, IP67
- Other characteristics
- compact, economical, with LCD display, with digital display
- Pressure range
Min.: 0 mbar
(0 psi)Max.: 100,000 mbar
(1,450.38 psi)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 160 °C
(320 °F)
Description
The pressure transmitter/pressure switch PASCAL CS is suited for measuring the relative and absolute pressures of gases, vapors and liquids. The multifunctional PASCAL CS displays the measurement; outputs a current signal proportional to the pressure. It has two optional contacts.
