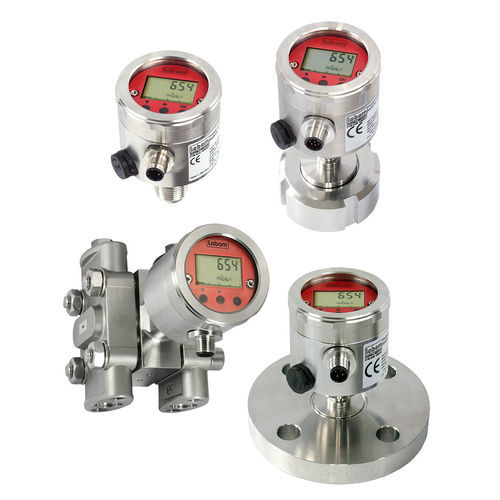

Differential pressure transmitter PASCAL CV3 Delta Ppiezoresistivedigital4-20 mA
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- piezoresistive
- Output
- 4-20 mA, digital
- Material
- stainless steel
- Protection level
- ATEX, IP65, IP67
- Pressure range
Min.: 1 bar
(14.5 psi)Max.: 40 bar
(580.15 psi)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
The digital differential pressure transmitter PASCAL CV Delta P is suitable for level measurement in pressure vessels and filter monitoring.
Technical aata
Ambient temperature -
-20…85 °C
Material wetted parts -
Stainless steel 316L
Other materials on request
Material case -
Stainless steel
Process connection -
Threaded
For more detailed information, please refer to the data sheet
Process connection -
4...20 mA
4...20 mA HART
PROFIBUS
With Contact
