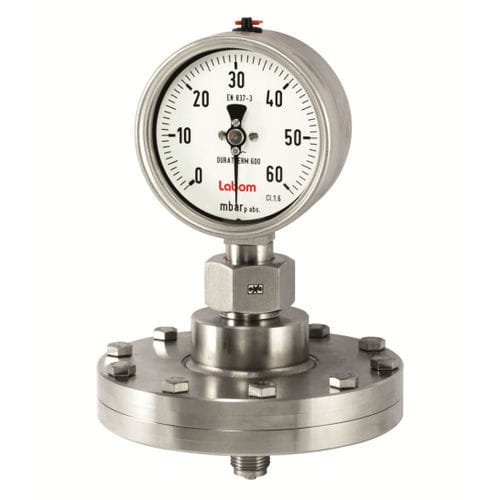

Absolute pressure gauge BB2 seriesanalogthreadedflange
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Display
- analog
- Mounting
- threaded, flange
- Material
- stainless steel
- Technology
- diaphragm
- Communication
- 4-20 mA
- Protection level
- ATEX, IP65
- Applications
- process
- Pressure
Min.: 0 bar
(0 psi)Max.: 2.5 bar
(36.26 psi)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 110 °C
(230 °F)
Description
Suitable for measuring liquids and gases. With open measuring flange designed for viscous media and media containing solids, too. The device is fitted with a vaccum chamber, which is sealed off from the process by a diaphragm. Thus, enabling absolute pressures to be measured.
