Optical microscope LB-1000

digitallaboratoryupright

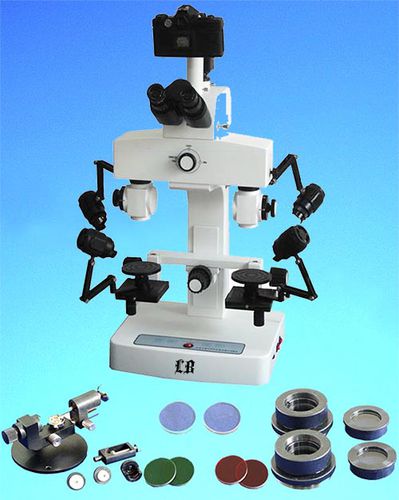

LB-1000 Comparison Microscope can observe two objects with a pair of eyepiece at the same time. Using field cutting, docking and overlapping methods, two (or more) objects can be compared together. LB-1000 has clear image, high resolution, and can identify tiny differences between objects accurately. It is basically used for forensic science and police departments. Can be used for Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation. With changeable objectives, right and left objectives can be adjusted to consistency. Stage size: 100mm×100mm, Moving range: The transverse, longitudinal, vertical directions are 0-54mm, horizontal rotation 0 ° -360 °, stage inclined to any direction of 0 ° - 45 °. Two stages can be adjusted horizontally at the same time, moving range: 0-54mm. Coarse lifting range of 0 - 60mm. Equipped with 12V/50W air-cooled lamps, large power LED lamps, light intensity is adjustable. Polarizing attachment(optional), used to eliminate stray and glare light. (optional) Coaxial illumination device(optional), used for observation of deep hole, small hole and smooth surface. (optional) With C-mount video attachment, digital cameras can be used for synchronous observation, images and videos can be saved and analyzed. With Photo attachment, Nikon or Olympus DLSR cameras can be used to take pictures.
