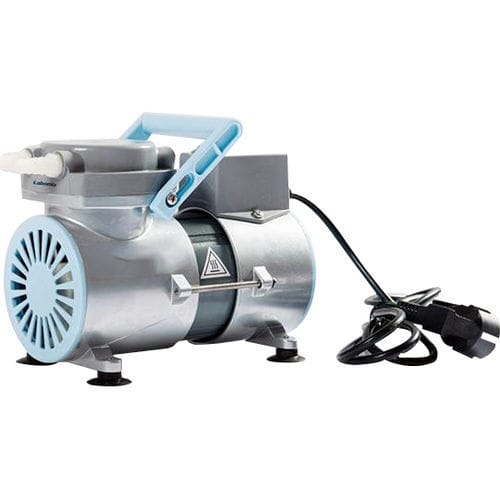

Diaphragm vacuum pump MLDVP-1Alubricated220VACsingle-stage
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- lubricated
- Supply voltage
- 220VAC
- Number of stages
- single-stage
- Applications
- for laboratories
- Other characteristics
- modular
- Ultimate vacuum
250 mbar
(3.63 psi)- Flow rate
12 l/min
(3.17 us gal/min)- Power
75 W
(0.1 hp)- Operating temperature
Max.: 55 °C
(131 °F)Min.: 0 °C
(32 °F)- Length
195 mm
(8 in)- Width
95 mm
(3.74 in)- Height
156 mm
(6.14 in)- Noise level
Max.: 60 dB
Min.: 0 dB
- Weight
4 kg
(8.82 lb)
Description
Diaphragm Vacuum Pump MLDVP-1A with nitrile (NBR) pump material is equipped with automatic cooling exhaust system to ensure continuous 24 hours operation & deliver contamination-free air, gases or vapours. Its high quality classical axle tree design enables steady running with low noise and high operating efficiency. It can operate independently or as part of a modular system and require minimal maintenance.
FEATURES
Eco-friendly oil-free displacement pumping
Air exchange bin with filtering system for clean flow of air
Self-cooling air draft system
High quality classical axle tree design
Frictionless operating system
Nitrile rubber (NBR) diaphragm pump for organic solvents applications
User-friendly operations
