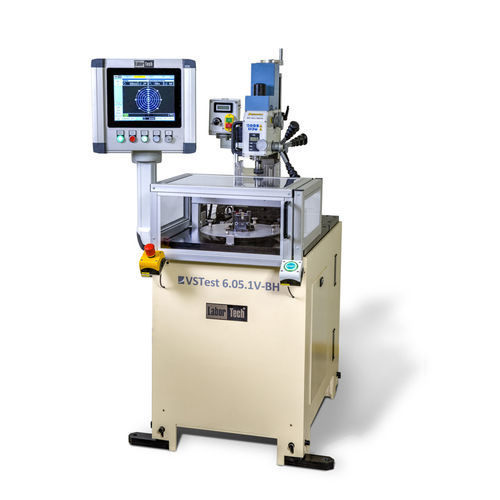

Automatic balancing machine VSV. 1

verticaldynamicfor rotors

Vertical balancing machines VSTest by LABORTECH are designed for dynamic rotor balancing in the vertical direction of the rotation axis. These machines can balance rotors without their own shaft, turbines, brake discs, clutches, lamellae, etc., which are attached to the balancer spindle. This spindle is terminated by a clamping device adapted to the given balancing piece, with the possibility of varying imbalance correction. These machines are manufactured in several modifications and are designed to be fully cooperative with the operator of the machine in conjunction with the integrated touch screen LCD monitor and a fully-fledged PC with BALANCERTest software. • Balancing in 1 or 2 planes • Robust vertical frame with high stiffness and resistance to dynamic interference, durability, suitable ergonomic layout and maintenance-free operation. • Protective safety cover made of ITEM profiles and polycarbonate with high safety EN ISO 13849-1 / 2 • Modular machine design – machine variants with various corrections of imbalance and manipulation. • Field of application: flywheels, gear units, fans, lamellas, tools, etc. • Clamping of parts: mechanical, pneumatic, special clamping • Machine calibration in accordance with ISO 21940-21 • Control of the machine via touch screen LCD and PC with BALANCERTest – BASIS software in the base of the machine.
