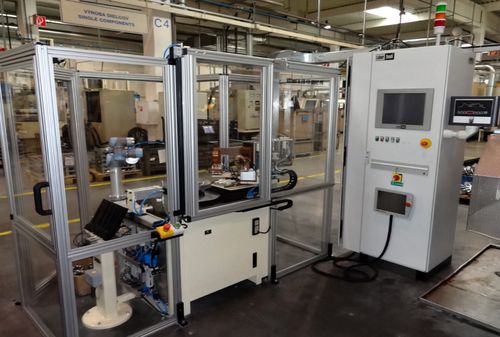

Automatic balancing machine AVS. 2

verticaldynamicfor turbine wheels

Semi-automatic Vertical Balancing Machine VSTest designed for balancing leitrades. The balancing machine has a fully automatic cycle, i.e. it detects an imbalance, corrects it by welding a weight to a precisely defined place, and performs a control measurement. The machine operator only inserts and removes the parts. • Vertical balancing machine with 1-plane measurement with manual loading and unloading • Correction of imbalance by VTS welding unit – weights with nipples. • Loading of the welding weights using ROBOTA UR5 from interchangeable trays for multiple types of weights • SIEMENS Simatic S7 1500 control system incl. LCD. • Clamping of parts – pneumatic with automatic centering and easy collet replacement • Machine calibration in accordance with ISO 21940-21 • Destination – AUTOMOTIVE • Control of the machine via touch screen LCD and PC with BALANCERTest – BASIS software in the base of the machine.
