Robotic manipulator AZS.1

electromechanicalhydraulicwith gripping tool

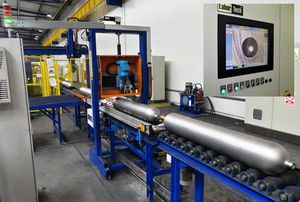

X RUNNER automated robotic test systems are designed for precise and fast sample handling in conjunction with the electromechanical or hydraulic testing systems labTest E series and H series. These robotic systems are produced in several modifications and are designed for automatic testing of flat samples. Thanks to the modular design, various peripherals can be connected to our robotic test systems. Modular and economical system with the possibility of customization according to customer requirements. Low operating and maintenance costs including 100% machine utilization (3 shifts). Total Cycle of the line – loading of the sample up to 20 sec with a max. weight of test samples of 30 kg. Control system X RUNNER – SIEMENS Simatic S7 1500 incl. LCD – RUNNERTest v. 2 and robot FANUC, HYUNDAY, KUKA. Automated testing of standardized samples in accordance with EN ISO 6892-1 or EN ISO 527-1. Different types of containers depending on the type of samples, measuring device of sample dimensions, marking and identification equipment, VIDEO Extensometer, different types of clamping jaws and jigs special robotic grippers, boxes for taking broken samples, extended storage systems, etc.
