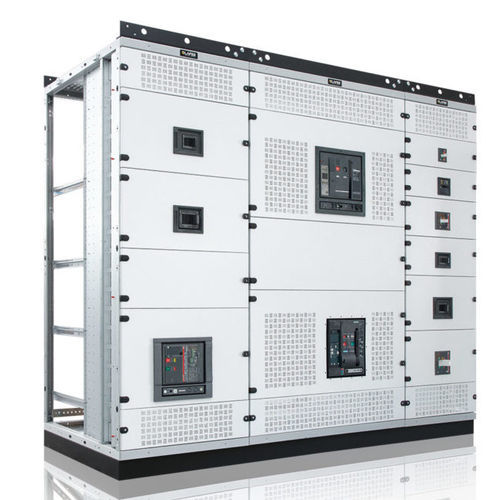

Distribution electric cabinet PW-Tech

floor-mountedIP55IP30

Specifically conceived for energy distribution. They are suitable for any typology of wiring, accessibility and segregation form. Main characteristics Assembled structure made of sheet with a thickness of 20/10 mm. Plinth with reinforced flanges ( thickness 20/10 mm) for handling on rollers. Degree of protection from IP30 (open version) to IP55 with blind door or transparent door with toughened glass. Internal arc-proof version available upon request. Possibility of lateral coupling with other Lafer enclosures (MC-Cub, ME-Cub and Automation). Installation of devices of all manufacturers (ABB, Schneider, Siemens, etc.). Epoxy powder coating after phosphating in RAL 7035 B (other colours on request). Stainless steel cabinet on request. Patented and certified earth connection system. Internal finishing accessories for any type of exigence. > ADVANTAGES Aesthetic continuity with the whole Lafer product range. Fully assembled structure. Drilled door and circuit breaker support arrangement. Both the enclosure and busbars are available from form 1 up to form 4 with back or frontal accessibility. Pw-Tech enclosures can be laterally combined with those of Automation, MC-Cub and ME-Cub series. Plastic cable duct already prepared for vertical cable passage. Possibility of designing the structure with Fast-One configurator and calculating the overtemperature according to regulations in force. Busbar systems certified by accredited bodies ( IPH Berlin – CESI Milan ) for all circuit breakers available on the market.
