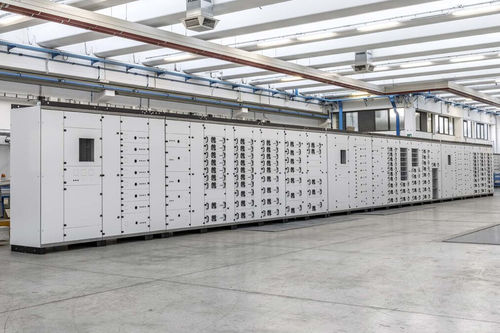

Control fuse box ME-Cub 2.0

equippedfloor-mountedstainless steel

A product range designed for motor starting and control. Me-cub 2.0 versatile design can accommodate different sizes of withdrawable units providing a solution to all types of applications. Main characteristics Assembled sheet metal enclosure (uprights thickness: 20/10 mm). Degree of protection from IP30 (cabinet without door) up to IP55 (cabinet equipped with transparent tempered glass door). Internal arc-proof version available upon request. Compartment equipped with side and horizontal partitions, rear wiring plate with female connector for auxiliary circuits and power pliers . Withdrawable unit equipped with customizable front panel, SwitchLAF™ 2.0 system, male connector for auxiliary circuits and power contacts. Possibility of side connection. Installation of circuit breakers of all leading manufacturers (ABB, Schneider, Siemens,etc.). RAL 7035 B epoxy powder coating (other colours on request). Enclosures available in stainless steel on request. Patented and certified earthing system. Reinforced plinth for a safe handling of the enclosure. Full range of internal finishing accessories to meet any requirement. > ADVANTAGES Aesthetic continuity with the whole Lafer product range Fully assembled structure. SwitchLAF 2.0 interlocked with circuit breakers of all leading manufacturers (ABB, Schneider,Siemens,etc.). Configurations available from form 1 up to form 4 with front or back access. Me-cub 2.0 enclosures can be laterally combined with those of Automation, PW-Tech and MC-Cub series. Development of the enclosure layout and calculation of the temperature rise limits according to regulations in force by means of FAST-ONE product configurator.
