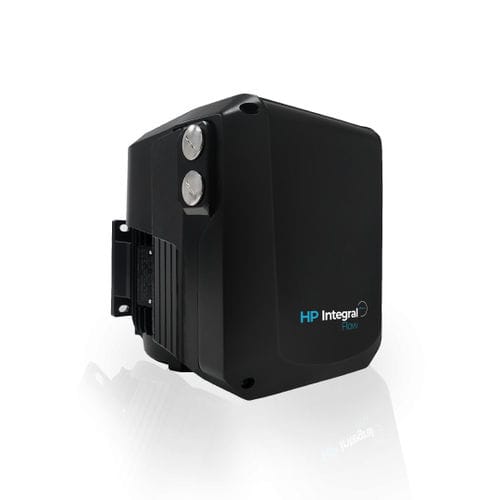

Integrated-drive motor HPI series

three-phasebrushless220 V

• Maximum integration for increasingly performance • IE5 – efficiency ahead of its time • Combination of AC motor’s reliability and Brushless Servomotor's performance High Performance Integral (HPI) is the second generation of our innovative range of fully integrated PM (Permanent Magnet) Synchronous Motors with variable frequency drive (VFD - IE2 efficiency), which guarantees IE5 Ultra Premium Efficiency and offers reduced energy consumption thanks to greater energy efficiency. This unique product combines the electrical design of brushless servo motors with the mechanical design of AC asynchronous motors and is ideal for both constant and quadratic torque applications. The result is an even more compact, robust and efficient motor, suitable for applications in HVAC, material handling and anywhere energy saving is essential. • drive pre-configuration that allows for immediate use after installation– the operating parameters are preloaded without the need for further technical settings • advanced electronic control that allows you to configure the drive through HP Drive Tools, a user interface available for PC or mobile app, transferable with dedicated HP Drive Stick (USB) • opportunity to optimise performance and adapt to the needs of individual applications by synchronising motor and drive as a single package • greater efficiency and shorter payback time thanks to precise speed control and system optimisation • built-in drive for an ultra compact design • three motor/drive configuration packages - Smart, Flow, Plus - to satisfy both variable and constant torque applications.
