Wheel with solid tire ADINYL series
polyamidefor heavy loads

Wheel with solid tire - ADINYL series - LAG SPA - polyamide / for heavy loads
Wheel with solid tire - ADINYL series - LAG SPA - polyamide / for heavy loads
Wheel with solid tire - ADINYL series - LAG SPA - polyamide / for heavy loads - image - 2
Add to favorites
Compare this product


Characteristics

Type
with solid tire
Hub material
polyamide
Applications
for heavy loads
Load capacity

Min.: 250 kg
(551 lb)

Max.: 1,000 kg
(2,205 lb)

Diameter

Min.: 80 mm
(3.15 in)

Max.: 275 mm
(10.83 in)

Tread width

Min.: 40 mm
(1.57 in)

Max.: 60 mm
(2.36 in)

Description

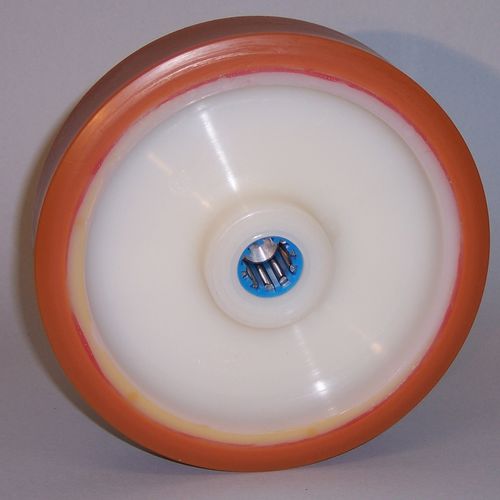

POLYAMIDE 6 CORE - CAST POLYURETHANE COATING Cast polyurethane coating, hardness 95±3 Shore A. Core in high quality polyamide 6. High load capacity; smooth and noiseless running; high resistance to shocks, abrasion and corrosion; easy to clean. Temperature range: -30°C / + 80°C (-22°F / +176°F). Hub with: shielded precision ball bearings; standard or stainless steel roller bearing; plain bore.
