Swivel caster ELASTIC + P60base platewith brakeheavy-duty
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with brake, heavy-duty, elastic, pressed steel, aluminum, elastic rubber
- Load capacity
Min.: 150 kg
(331 lb)Max.: 700 kg
(1,543 lb)- Wheel diameter
Min.: 100 mm
(3.937 in)Max.: 300 mm
(11.811 in)- Tread width
Min.: 40 mm
(1.57 in)Max.: 60 mm
(2.36 in)
Description

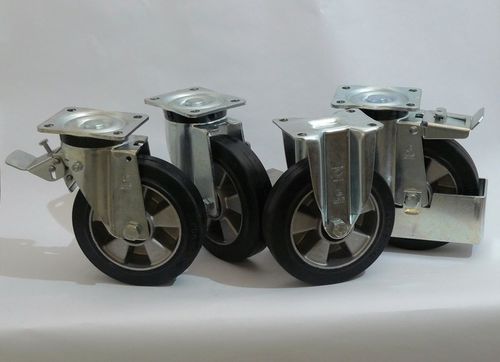

ELASTIC + P60
ALUMINIUM CORE - VULCANIZED BLACK ELASTIC RUBBER.
Black elastic rubber coating, hardness 73±5 Shore A.
Core in die-cast aluminium alloy.
Excellent smooth and silent running; high abrasion resistance.
Temperature range: -20°C / +70°C (-4°F / +158°F).
Hub with: shielded precision ball bearings; standard roller bearing.
HEAVY DUTY CASTORS
Finish: electro-zinc plated, white.
Top plate in pressed steel-sheet.
King-pin riveted to the top-plate.
Thermoplastic dust protection ring (water-resistant).
Hardened steel ball races.
Swivel fork in pressed steel sheet.
Hardened steel balls.
Thermoplastic dust seal (waterproof).
Balls retaining ring in pressed steel-sheet.
Self-locking nut.
