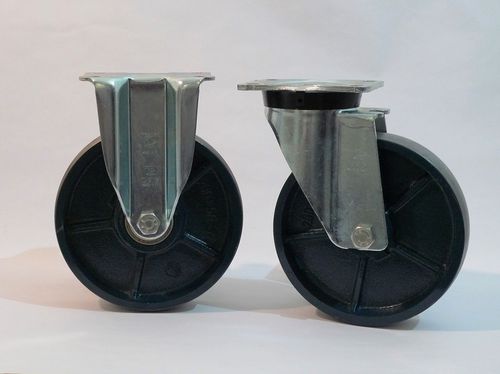

Swivel caster QUANTUM + P60base platewith ball bearingmonobloc
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, monobloc, heavy-duty, pressed steel, cast iron
- Load capacity
Max.: 850 kg
(1,874 lb)Min.: 450 kg
(992 lb)- Wheel diameter
Max.: 200 mm
(7.874 in)Min.: 80 mm
(3.15 in)- Tread width
Max.: 50 mm
(1.97 in)Min.: 30 mm
(1.18 in)
Description

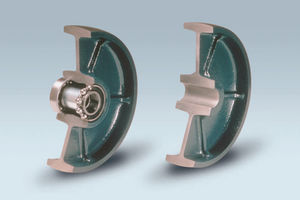

TURNED AND PAINTED CAST-IRON WHEELS.
Cast iron wheel, painted.
Round-machined tread.
Excellent smooth running; suitable for extra heavy loads.
Hub with: shielded precision ball bearings; machined plain bore.
HEAVY DUTY CASTORS
Finish: electro-zinc plated, white.
Top plate in pressed steel-sheet.
King-pin riveted to the top-plate.
Thermoplastic dust protection ring (water-resistant).
Hardened steel ball races.
Swivel fork in pressed steel sheet.
Hardened steel balls.
Thermoplastic dust seal (waterproof).
Balls retaining ring in pressed steel-sheet.
Self-locking nut.
