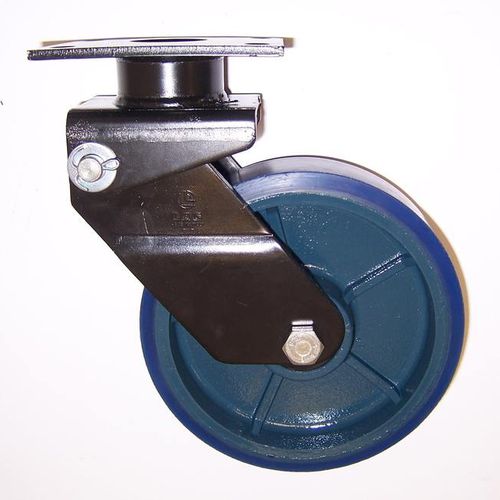

Swivel caster ZETA SOFT + M34base platewith ball bearinghigh load capacity
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, high load capacity, for medium loads, spring-loaded, polyurethane, cast iron
- Load capacity
Max.: 260 kg
(573 lb)Min.: 130 kg
(287 lb)- Wheel diameter
Max.: 200 mm
(7.874 in)Min.: 100 mm
(3.937 in)- Tread width
40 mm, 50 mm
(1.57 in, 1.97 in)
Description
CAST IRON CORE - CAST SOFT POLYURETHANE COATING.
Cast soft polyurethane coating, hardness 87±3 Shore A.
Core in cast iron painted.
High load capacity, smooth and noiseless running; high resistance to abrasion, wear and tear, oils and greases; schocks absorbing.
Temperature range: -30°C / +80°C (-22°F / +176°F).
Hub with: shielded precision ball bearings.
MEDIUM DUTY SPRING CASTORS.
Finish: electro-painted, black.
Steel-sheet top plate with bearing seat.
Oblique bearing with double row of balls.
Swivel fork in steel-sheet.
Polyurethane buffer spring.
Equaliser swinging on bronze bushes.
Catalogs
No catalogs are available for this product.
See all of LAG SPA‘s catalogs
