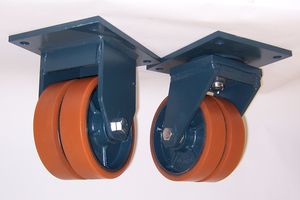

Wheel with solid tire ZETA series
cast ironsmoothball bearing

Wheel with solid tire - ZETA series - LAG SPA - cast iron / smooth / ball bearing
Wheel with solid tire - ZETA series - LAG SPA - cast iron / smooth / ball bearing
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
cast iron
Hub type
smooth, ball bearing
Tread material
polyurethane
Hardness
Shore A
Load capacity

Max.: 6,200 kg
(13,669 lb)

Min.: 150 kg
(331 lb)

Diameter

Max.: 500 mm
(19.69 in)

Min.: 80 mm
(3.15 in)

Tread width

Max.: 120 mm
(4.72 in)

Min.: 18 mm
(0.71 in)

Description

CAST IRON CORE - CAST POLYURETHANE COATING. Cast polyurethane coating, hardness 95±3 Shore A. Core in cast iron suitable for heavy and extra heavy loads; painted. Excellent smooth and noiseless running; high resistance to abrasion, wear and tear, oils and greases. Temperature range: -30°C / +80°C (-22°F / +176°F). Hub with: shielded precision ball bearings.
