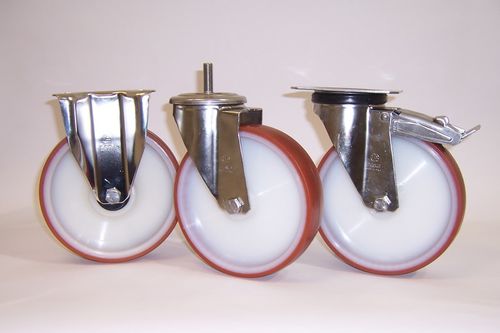

Wheel with solid tire NYLPOL + INOX20 seriespolyamideball bearingpolyurethane
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- polyamide
- Hub type
- ball bearing
- Tread material
- polyurethane
- Hardness
- Shore D
- Applications
- plate , sheet
- Other characteristics
- non-marking
- Load capacity
Max.: 370 kg
(816 lb)Min.: 100 kg
(220 lb)- Diameter
Max.: 200 mm
(7.87 in)Min.: 80 mm
(3.15 in)- Tread width
Max.: 50 mm
(1.97 in)Min.: 25 mm
(0.98 in)
Description
POLYAMIDE 6 CORE - INJECTED POLYURETHANE COATING.
Injected polyurethane coating, hardness 58±3 Shore D.
Core in high quality polyamide 6.
Noiseless running; high resistance to shocks, abrasion and corrosion; easy to clean.
Temperature range: -30°C / +80°C (-22°F / +176°F).
Hub with: standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearing; plain bore.
MEDIUM DUTY STAINLESS STEEL CASTORS
Finish: polished.
Top plate with forged central pin in pressed stainless steel-sheet AISI 304.
Thermoplastic dust protection ring.
Swivel fork in pressed stainless steel-sheet AISI 304.
Stainless steel balls AISI 420. Balls retaining ring in pressed stainless steel sheet AISI 304.
Catalogs
LAG General Catalogue 6.1
116 Pages
