Wheel with solid tire POLINYL + INOX20 seriespolyamideball bearingpolyurethane
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- polyamide
- Hub type
- ball bearing
- Tread material
- polyurethane
- Hardness
- Shore A
- Applications
- plate , sheet
- Other characteristics
- non-marking
- Load capacity
Min.: 150 kg
(331 lb)Max.: 370 kg
(816 lb)- Diameter
Min.: 80 mm
(3.15 in)Max.: 200 mm
(7.87 in)- Tread width
Min.: 30 mm
(1.18 in)Max.: 50 mm
(1.97 in)
Description
POLYAMIDE 6.
Highest quality polyamide 6 wheel.
Minimal rolling resistance; excellent resistance to shocks, abrasion and corrosion; easy to clean.
Temperature range: -30°C / +80°C (-22°F / +176°F).
Hub with: standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearing; plain bore.

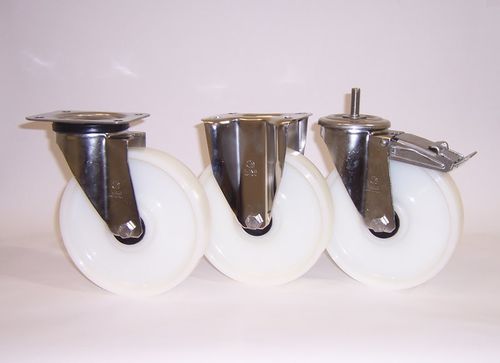

MEDIUM DUTY STAINLESS STEEL CASTORS
Finish: polished.
Top plate with forged central pin in pressed stainless steel-sheet AISI 304.
Thermoplastic dust protection ring.
Swivel fork in pressed stainless steel-sheet AISI 304.
Stainless steel balls AISI 420. Balls retaining ring in pressed stainless steel sheet AISI 304.
Catalogs
LAG General Catalogue 6.1
116 Pages
