Wheel with solid tire DELTA seriesblack rubberball bearingrubber
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- black rubber
- Hub type
- ball bearing
- Tread material
- rubber
- Hardness
- Shore A
- Applications
- bearing
- Other characteristics
- solid
- Load capacity
Min.: 50 kg
(110 lb)Max.: 285 kg
(628 lb)- Diameter
Min.: 80 mm
(3.15 in)Max.: 250 mm
(9.84 in)- Tread width
Min.: 25 mm
(0.98 in)Max.: 60 mm
(2.36 in)
Description

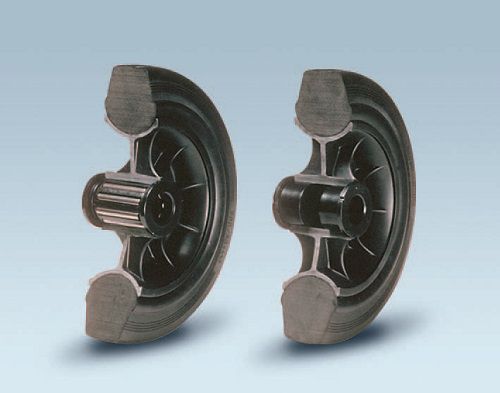

PLASTIC CORE - BLACK RUBBER RING.
Solid black rubber ring, hardness 85±5 Shore A.
Core in high quality black thermoplastic material.
Temperature range: -20°C / +60°C (-4°F / +140°F).
Hub with: standard roller bearing; nylon (polyamide 6) friction bearing.
Catalogs
LAG General Catalogue 6.1
116 Pages
