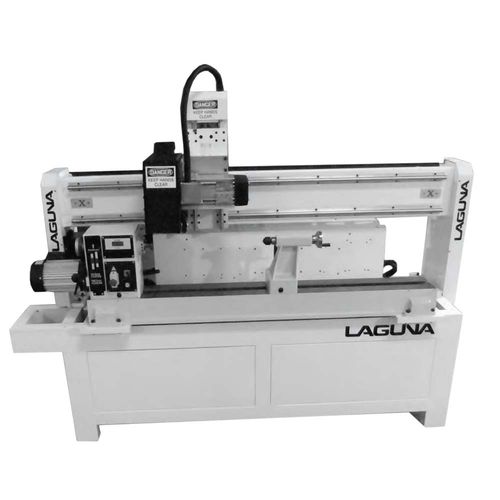

CNC lathe MCNC

vertical3-axis

The Bat Master is designed to give you years of safe service. Read this owner’s manual in its entirety before assembly or use. Features •Motor 3hp 220v single phase •Spindle Speed Variable (low 100 – 1200) (High 200 -3200 rpm) •Maximum Diameter 8″ •Distance Between Centers 47″ •Headstock and Tailstock Taper Morse number 2 •Tailstock Travel 4 1/4″ •Spindle Thread 1.25″ x 8TPI •Headstock and Tailstock Borer 3/8″ •Cutter Motor 3.6 HP 1 ph 220V •Controller Laguna HHC (Hand Held Controller) •Volts One phase 220v/30 amp •Ball Screw Adjustable on Vertical Axis Yes •Rack and Pinion on Horizontal Axis Yes •Maximum Spindle Length 44″ •Blade Bore 1″ Outside diameter 10″ •Machine Foot Print 73″L x 24″D x 65″H
