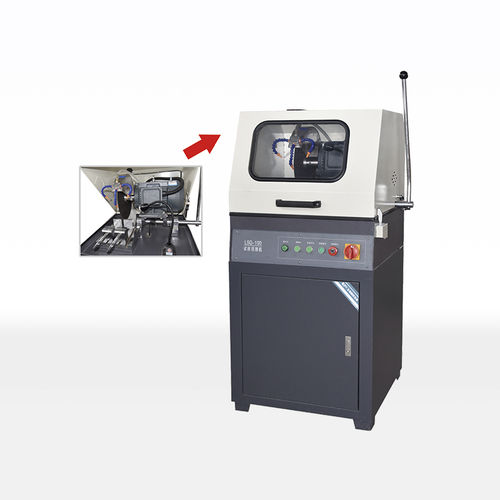

Blade cutting machine LSQ-100

for metalsamplemetallographic

Main features of LSQ-100 vertical metallographic sample cutting machine: lq-100b manual self-contained cutting machine is composed of machine body, electric control box, cutting chamber, motor, cooling system, cutting grinding wheel, etc. The cutting machine can not only cut circular workpieces with a diameter of less than 80mm, but also cut rectangular specimens with a height of 800mm and a depth of less than 200mm. The machine cools the sample through the cooling system to prevent the sample from overheating and burning the tissue during cutting. The machine can also set the cutting speed for cutting different samples, so as to improve the quality of cutting samples. The machine can cut automatically and automatically. The large volume cutting room is more convenient for the cutter. It is one of the necessary sample equipment for metallographic experiments in colleges, universities and factories. Main technical specifications: Three phase four wire 380V50Hz; Spindle speed: 2200r / min; Cutting blade specification: φ 350*2.5* φ 32mm； Automatic cutting stroke: 125mm; Maximum movement of worktable: 275mm; Input power: 3.3kw; Feed speed: 1-6mm / min; Workbench size: 310 * 280mm; Overall dimension: 835 * 850 * 1620mm;
