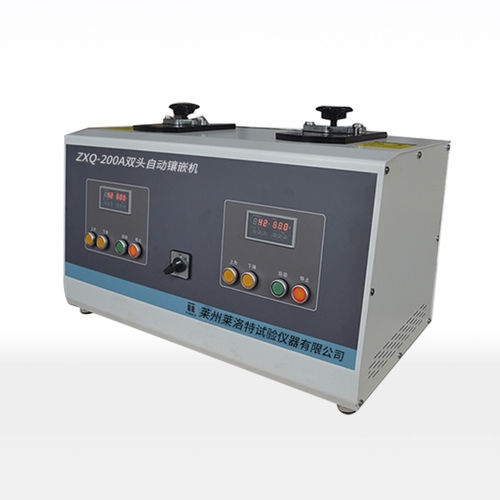

Automatic mounting press ZXQ-200A-2

for metallographic samples

ZXQ-200A-2 simple control metallographic specimen inlaying machine is a lightweight automatic inlaying machine newly developed by the company for the current market. One appearance patent and two utility model patents have been obtained. This machine completely solves the manual operation of small inlay machine; The heating power is small and the pressure is low (most of the measured heating power is lower than 600W and the pressure is lower than 150kg). The machine has high comprehensive cost performance, one key sample making, rising and falling automatically stop. It is an ideal substitute for manual inlay machine. The control panel is composed of temperature and time controller, rise and fall keys, start and stop keys and power switch. The comprehensive sample preparation time is 8-10min, and the performance is better than the hand inlay machine on the market. Intelligent integrated controller is adopted for temperature and time control, with one key sample preparation, automatic tracking and pressurization, and the operator can handle other businesses in the sample preparation gap; Large diameter 22mm key is adopted, which is suitable for operators to wear protective gloves. Main technical indicators: 1. Pressurization mode: electric pressurization 2. Maximum pressure: 200kg 3. Maximum heating power: 800-1000w × two 4. Temperature control range: 0-150 ℃ 5. Time control range: 0-999S 6. Cooling mode: natural convection 7. Input voltage: AC220V (other system voltages can be customized) 8. Overall power: less than 2200W 9. Overall dimension: 650 × four hundred and fifty × 500 (long) × wide × High) 10. Overall mass: 90kg
