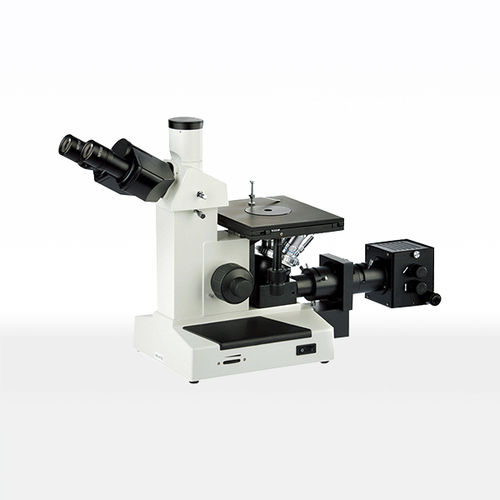

Metallographic microscope 4XC

metallurgicalinvertedtrinocular

4XC Trinocular inverted metallurgical microscope Main features: 4XC-type metallographic microscope is mainly used to identify and analyze the internal structure of the metal structure, which is metallographic study of the important instruments, is the industrial sector to identify key product quality equipment, mainly for the identification and analysis of various metals and Alloy structure, used in factories or laboratories for the identification of casting quality, testing of raw materials or material processing microstructure research and analysis work. Main specification: Plane eyepiece WF10X/Φ18, WF12.5X/Φ15 Graduated ocular WF10X/Φ18, 0.1mm Flat-field achromatic objective lens Scale cross division plate, adjustable focus The total magnification 100X-1250X Triocular head Hinge type,30̊ incline Converter 4 holes Coarse-fine tuning range 25mmMicro scale,2μmRough micro - axis focus Stage Double mechanical size:180*150mm Stage moving range Moving scale:15*15mm Φ10/20mm micro slide each, Vernier scale 0.1mm Pupil distance 55-75mm Mechanical tube length 160mm Illumination Adjustable brightness, with iris, PAR lamp 6V 20w Weight Net weight 8.5kg , gross weight: 10.0kg Dimension Instrument size: 20*56*35cm Packaging size: 29*43*59cm
