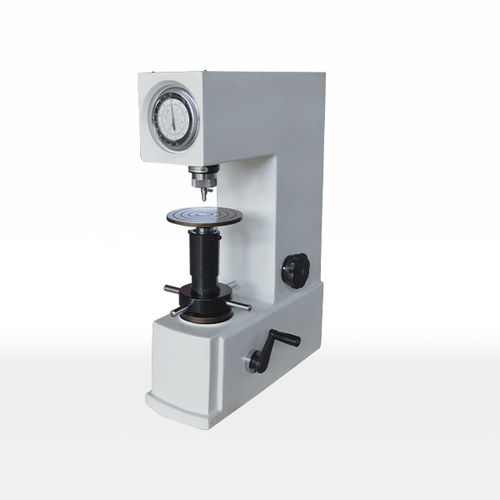

Rockwell hardness tester HR-150/45

benchtopfor metallographic samplessuperficial

HR-150/45 Main features : This Double Use Surface hardness and Rockwell Hardness Tester will offer unmatched repeatability in all Rockwell hardness scales. A perfect performer suited for any environment including heat treatment facilities, tool rooms, workshops, laboratories and inspection labs. Surface hardness and Rockwell hardness can be measured . Display screen reads directly, and without any error . High quality surface metal paint makes the appearance more solid and beautiful. Manual loading, high precision test process. Application:The Superficial Rockwell Twin Hardness Tester tests both Rockwell and Superficial Hardness in one unit, expand the scope of use. Specifications: Measuring range 20-88HRA, 20-100HRB, 20-70HRC 70-924HR15N, 67-93HR15T, 42-86HR30N, 29-82HR30T, 20-77 45N, 10-72HR45T Test forc 588.4, 980.7, 1471N (60, 100, 150kgf) 147.1, 294.2, 441.3N (15, 30, 45kgf) Max. height of test piece 160mm Depth of throat 140mm Hardness resolution 0.5HR Dimension 463 x 241 x 660mm Weight approx. 75kg
