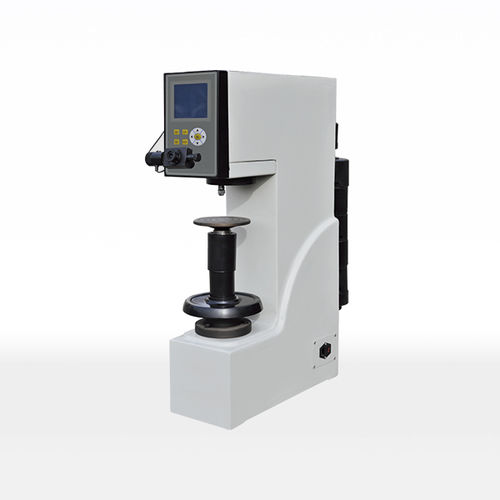

HBS-3000 digital display Brinell hardness tester
Main features :
Innovative design, solid construciton ,high test efficiency ;
Weight adding system ,LCD display test process;
On-board measurement, can be converted Rockwell, Vickers hardness and tensile strength, then print hardness test results;
Large LCD liquid crystal display, menu intellisense, easy to operate;
Video system and CCD image processing system optional;
Precision conforms to the Standards of GB/T 231.2, ISO 6506-2 and ASTM E10.
Application:
It's suitable to determine the Brinell hardness of ferrous metals, nonferrous metals and bearing alloy materials;
Wide range of applications, especially for parallel plane precision measurement.
Specifications:
Measuring range 8-650HBW
Test force 1838.8,2451.8,4903.5,7355.3,9807,29421N
(187.5,250,500,750,1000,3000kfg)
Max. height of test piece 235mm
Depth of throat 120mm
Optical magnification 20x
Min test unit 1μm
Power AC220V 50/60HZ
Dimension 705*215*880mm
