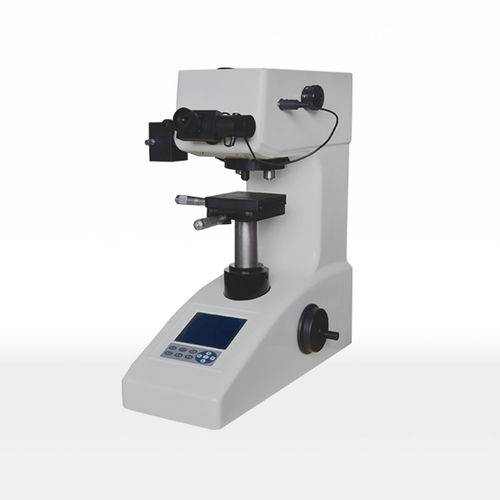

Vickers hardness tester HVS-1000Z

benchtopfor non-ferrous metalsfor steel

Main features of HVS-1000Z type: Friction free spindle, high test force accuracy; High precision optical measurement system, precision coordinate test bench; The test process is automatic and easy to operate. The position switching of observation test measurement of the hardness tester is completed by the automatic turret, and no one is responsible for the operation error; Print hardness test results with a random printer; Optional CCD camera and image processing system; Knoop indenter can be selected for Knoop hardness test; The accuracy shall comply with GB / t4340 2 ISO 6507-2 and ASTM E384. Application scope: Nitrided layer, ceramics, steel, non-ferrous metals; Thin plate, metal sheet, electrodeposited coating and micro test piece; Depth measurement of carbonized layer, decarburized layer and quenched hardened layer; It is suitable for precision Vickers measurement of parallel plane, micro parts and ultra-thin parts. Main technical specifications: Measuring range: 5-3000hv Test force: 0.09807,0.2454,0.4904,0.9807,1.961,2.942,4.904,9.807n (10,25,50,100,200,300,500,1000kgf) Magnification of measuring system: 400X, 100X Minimum detection unit: 0.5 μ m Maximum allowable height of sample: 90mm
