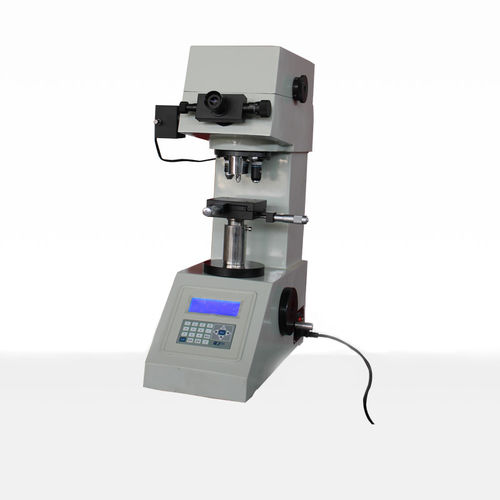

Vickers hardness tester 200HV-5

benchtopmetalfor non-ferrous metals

200HV-5 Low-load vickers hardness testing machine Main features: Weightdirect load-type Vickers integrated machine, high precision ; LCD hardness display, high precision optical measurement system; CCD image processing system optional; The test force covers the microscopic and Vickers test requirements; It isequipped with precision coordinate test bench; Precision conforms to the Standards of GB/T 4340.2, ISO 6507-2 and ASTM E92. Application: It is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is and also suitable to determine the Vickers hardness of micro and super thin parts. Specifications: Measuring range 5-3000HV Test scale 1.961,2.942,4.93,9.807,19.61,25.52,29.42,49.03N (0.2,0.3,0.5,1.0,2.0,2.5,3,5kgf) Magnification 400x;100x Min test unit 0.25mm Test force dwelling time 0-99s Max height of specimen 130mm Throat depth 110mm Size of XY coordinate worktable 100*100mm
