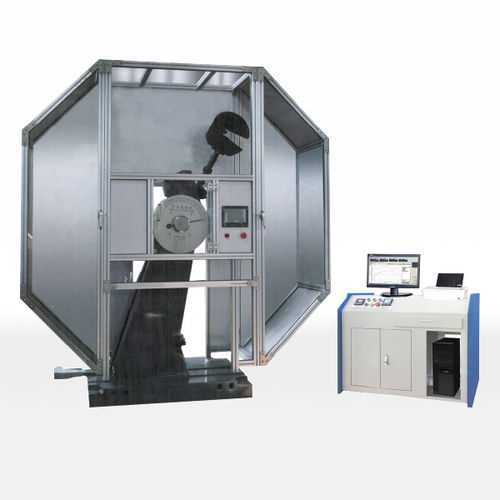

Impact testing machine W300 / 450 / 500 / 600 / 750C

computer-controlledautomaticfor metallic materials

The equipment is an instrument for testing the impact resistance of metal materials under dynamic load. It can continuously do a large number of metal impact tests. It adopts automatic control. The control system adopts imported programmable controller (PLC) to control the whole process of pendulum taking and impact test through microcomputer software program. The machine is equipped with aluminum alloy protective cover, which provides conditions for users' safe operation. It is not only a necessary testing instrument for metal material manufacturers and quality supervision department [], but also an indispensable testing instrument for new material research in scientific research institutions. Technical features: The standard bipolar reducer replaces the complex transmission system of the old pendulum. It has the advantages of simple structure, convenient assembly and maintenance, long service life, low failure rate and maintenance free. The reducer is connected with the pendulum shaft through a special electromagnetic clutch, which has the advantages of large torque, low noise and fast response; The main engine base and column are designed and cast in one-piece, with high stability and rigidity. The column is symmetrical front and rear. The pendulum shaft is supported by simply supported beam, with simple structure and high machining precision; The sample recovery device adopts the motor conveyor belt to facilitate the collection of samples:
