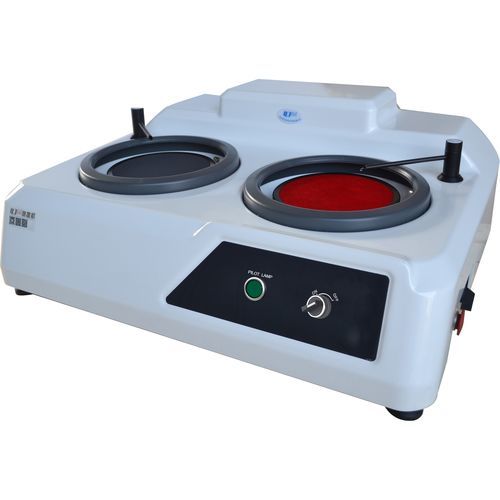

Metallographic sample grinding polishing machine MP-2

for metalographic laboratories

MP-2 Metallographic Sample Grinding and Polishing Machine Main features: This grinding and polishing machine is a double-disc desktop machine, which is suitable for pre-grinding, grinding and polishing of metallographic samples. It is an indispensable equipment for users to make metallographic samples. The machine is equipped with a cooling device, which can cool the sample during pre-grinding to prevent damage to the metallographic structure due to overheating of the sample. The left disc of the machine is a grinding disc, and the right disc is a polishing disc. It can be operated by two people at the same time. The machine is easy to use, safe and reliable. Main technical specifications: Working voltage: 380V50Hz (220V50Hz customized) Diameter of grinding disc: φ200mm speed 600r/min Diameter of polishing disc: φ200mm, rotating speed 800r/min (customized for 450/600) Motor: YC7124, 370W Dimensions: 820mm×660mm×303mm; Weight: 50kg
