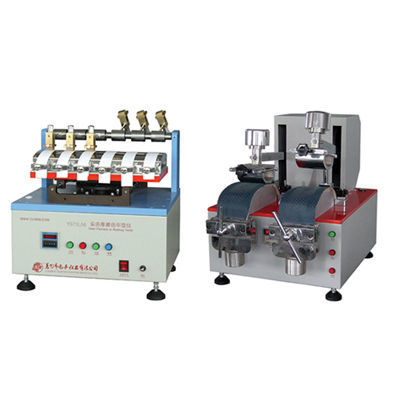

Y571LA6/LA2 Series Color Fastness Rubbing Tester
Technical parameter
Type - Y571LA6 - Y571LA2
Model - JSPS model -
Number of working places - 6 bits - 2 bits
Rubbing head diameter - Arc - 90mm, radius of curvatur:70mm
Rubbing head pressure - 2N(Optional:1N,2N,5N) - 5kg
Traverse length in horizon - 100mm - 150mm
Traverse speed - 30 times/min - 30 times/min
Testing times - 1~9999×100 - 1~9999×100
Power - 70W - 180W
Power supply - AC 220V±10% 50Hz - AC 220V±10% 50Hz
Applicable standard - JIS L0849 - YS/T429.2,GB/T17748
Functions - Used to test the grade of fabric by rubbing. - It is used for testing rubbing strength of woven,knitting,mixing fabric and leather.
Volume - 430mm×370mm×435mm - 500mm×450mm×580mm
N.W. - 39kg - 47kg
Packing dimension - 540mm×490mm×540mm - 600mm×555mm×680mm
