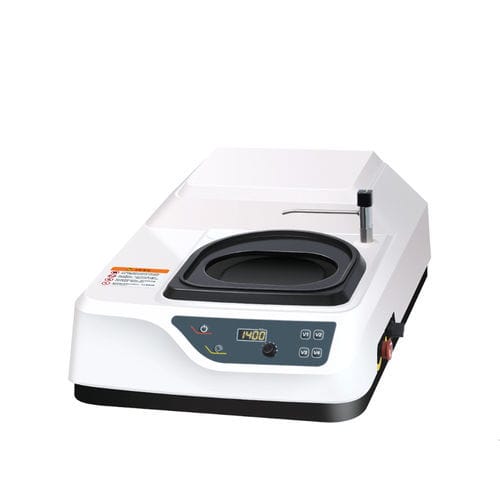

Plate grinding polishing machine MoPao®300

metallographic samplefor metalographic laboratoriessingle

This grinder polisher is single plate. It is suitable for pre grinding, grinding and polishing metallographic specimens. Since the machine is speed-adjusted by microprocessor, it can run at a revolution of 0 to 600rpm/1000rpm/1400rpm,which favors the machine with wide applications This grinder polisher is single plate. It is suitable for pre grinding, grinding and polishing metallographic specimens. Since the machine is speed-adjusted by microprocessor, it can run at a revolution of 0 to 600rpm/1000rpm/1400rpm,which favors the machine with wide applications. The machine is equipped with cooling system that can cool down the specimen during pre grinding so as to prevent overheating and damage the metallographic structure. Featuring easy operation and reliable performance, it is an indispensable device for the factories, research institutions and college labs to prepare metallographic specimen. Technical Parameters Wheel diameter Φ300mm Rotational speed 0-600r/min Constant speed 150 r/min 、300 r/min、450 r/min、 600 r/min Emergency stop YES Rotational direction Clockwise or anticlockwise Input voltage AC220V 50Hz Wheel quantity 1PC Input power 0.75KW Dimension 594mm x795mm x310mm Net weight 40kg
