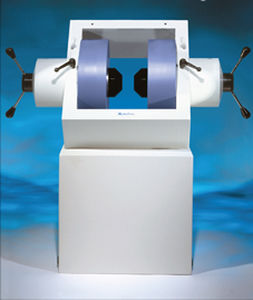

Electromagnetic field generator EM4-HVA, EM7-HV

stand-alone

Electromganet Features Continuously adjustable poles allow rapid air gap changes to suit individual experiments, assuring magnet versatility Exceptional field intensities achieved with cylindrical or tapered pole caps Water-cooled coils provide excellent field stability and uniformity Removable pole caps facilitate variable pole face configurations and easy pole cap exchange Accurate pole alignment by precise construction of the air gap adjustment mechanism Precision yoke of magnetically soft, ultra-pure steel to assure precise alignment of the pole caps - critical for good homogeneity and reproducibility The EM7 yoke is oriented at a 45° angle and the EM4 yoke at a 40° angle for optimum air gap accessibility Compact size of the EM4 permits convenient bench-top mounting Optional optical access pole caps available The Lake Shore EM4 and EM7 series electromagnets (EM) produce variable magnetic fields with a variety of air gap and pole cap configurations. The EM series are ideally suited for integration into customer designed magnetic test platforms for applications including magneto-optical studies, magnetic hysteresis studies, in-line annealing, Hall effect studies, susceptibility measurements, spin magnetic resonance demonstrations, and biological studies.
