Oil reel
hosefor fuelself-retracting

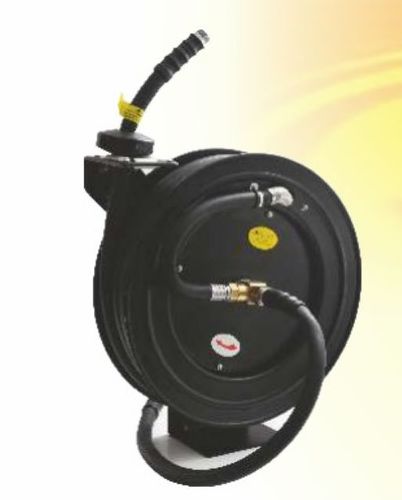

Oil reel - Laminar Technologies - hose / for fuel / self-retracting
Oil reel - Laminar Technologies - hose / for fuel / self-retracting
Add to favorites
Compare this product


Characteristics

Type
hose
Applications
for oil, for fuel
Drive mechanism
self-retracting
Configuration
fixed, wall-mounted
Reel material
steel
Hose/cable length

15 m
(49'02" )

Pressure

Max.: 30 bar
(435.1 psi)

Min.: 10 bar
(145 psi)

Description

Auto-Retractable Oil Hose Reel What makes it special? • - Industrial-grade Spring-Steel based auto-retraction mechanism • - 18-Gauge Steel Construction • - 12-Point ratchet for precise resolution • - Powder-coated Steel to resist corrosion • - Adjustable Outlet Arm • - 4-way Roller Guides • - Ceiling, Floor, Wall mounting options • - In-stockspare part programme • - 2-Year Warranty Hose Feature • - For fuel, oil and biodiesel dispensing from tanks • - Revolutionary formulation allows it to be thickyet light weight • - RMA Class A Oil-Resistant Tube and Cover • - 2x Kink Résistance takes care of major pain point • - 8" Internai Relief spring prevents kinking at the coupling end • - Anti-Static Wire allows use with electric pumps • - Working Pressure: 10BAR; Burst Pressure: 30BAR Available Size (Hose ID) 19mm HOSE Length (mtrs) 15
