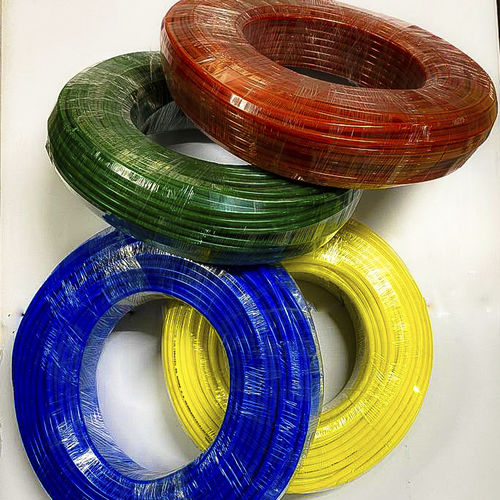

Compressed air tube PUS series
polyurethanepolyesterflexible

Compressed air tube - PUS series - Laminar Technologies - polyurethane / polyester / flexible
Compressed air tube - PUS series - Laminar Technologies - polyurethane / polyester / flexible
Add to favorites
Compare this product


Characteristics

Use
for compressed air
Material
polyurethane, polyester
Other characteristics
flexible, chemical-resistant, lightweight, abrasion-resistant, multi-color
Inner diameter

Max.: 11 mm
(0.433 in)

Min.: 1.8 mm
(0.071 in)

Outer diameter

Max.: 16 mm
(0.63 in)

Min.: 3 mm
(0.118 in)

Pressure

12 bar
(174.045 psi)

Temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Delivered length

100 m
(328'01" )

Catalogs

No catalogs are available for this product.

See all of Laminar Technologies‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
