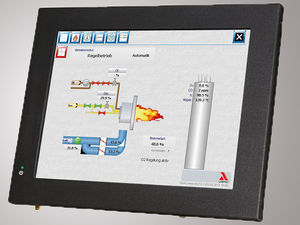

LCD monitor GKI300

touch screen10"1024 x 768

LAMTEC’s GKI300 Graphical User Interface offers data visualisation for combustion plants. By using a 10-inch touchscreen monitor, the GKI300 is enabling graphical representation and burner control: ETAMATIC ETAMATIC OEM FMS BT300 GKI300 is comprised of an independent PC with a 10-inch touchscreen. For control purposes, LAMTEC VISIOCONTROL software is used, which is usually pre-installed. After start-up, a graphical representation of the burner would be displayed for the user to visualise. The following menus are available: Refresh Burner operation Fuel-air ratio curves Firing rate controller CO/O2 control NEMS fault indication Close application Data setting Fault history All relevant information about the combustion plant would be displayed. At the same time, setpoint curves can be read and firing rate values can be preselected. The burner itself can be switched on or shut-down by GKI300. In the fault history list, the last 10 faults are saved and can be displayed.
