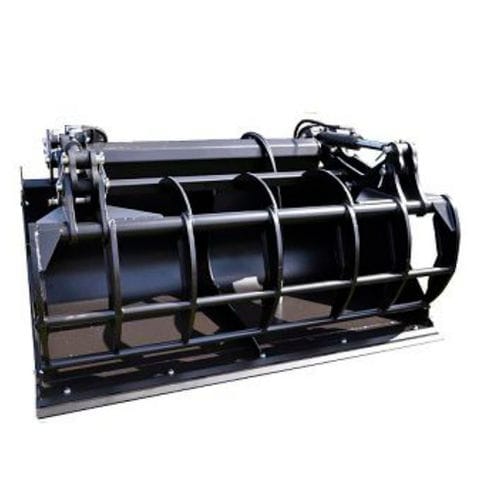

Grapple bucket BMF seriesfor loadersfor agricultural machinery
Add to favorites
Compare this product
Characteristics
- Type
- grapple
- Load-bearing
- for loaders, for agricultural machinery
- Bucket width
Max.: 6 m
(19'08" )Min.: 2 m
(6'06" )- Capacity
1.6 m³, 1.7 m³
(56.5 ft³, 60.03 ft³)
Description
Multifonction Bucket (BMF)
Available in several width from 1,70m to 2,60m, Flat bottom with central internal rib and total belt under the bucket in conjunction with brackets.
Models of grapples :
GRL.S : welded flat teeth (thickness : 20mm)
GRL.S1E : welded flat teeth (thickness : 20mm) with 1 steel tube connecting teeth.(right photograph)
GRL.S2E : welded flat teeth (thickness : 20mm) with 2 steel tubes connecting teeth. The bottom tube can be located right at the end of the teeth(left photograph) or further away.
GRL.S.2E.2P :The same but with two part grab (avoid interference with zbar on wheeled loaders)
MRK : Forged fingers 35mm lg.680mm (x7)
MRK.D : Same with larger number of forged fingers (x12) for better unsilage
