Design software LTire Design

CADtool managementcalculation

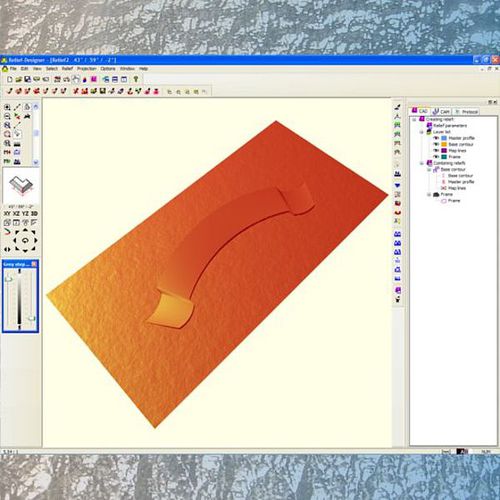

LTire – Software under Microsoft® Windows™ for fast and efficient construction of the total design of a tire sidewall mould and for LANG 4-axis machines for rotationally symmetrical round moulds (LGT, LGT-S, LGR, LGR-S). The program offers the usual CAD functions and beyond that a lot of automated functions, particularly optimised for designing tire sidewalls. Highlights Text record functions (e.g. justified setting, text on arc), support of fonts, special-fonts,font character editor Comfortable pocket construction Automatic clearing of fonts and logos with consideration of tool geometry: The automatic cutter radius correction produces the CAM data for all necessary tools in only one calculation passage (including those for clearing and contour paths) Comfortable visual marking function for partial output of data on the machine Digitization of the surface data directly on the tire sidewall mould or import of the surface cut line from CAD systems Tool management: tool requirement calculation, production parameter (e.g. spindle revolution and speed), programmable depending on tools Engraving of arbitrary free form surfaces/reliefs on the tire sidewall mould Layer-, tool- and object management Choosing of different object formatting on the tire sidewall mould (e.g. polar, cartesian, rolled on surface, projected on surface)
