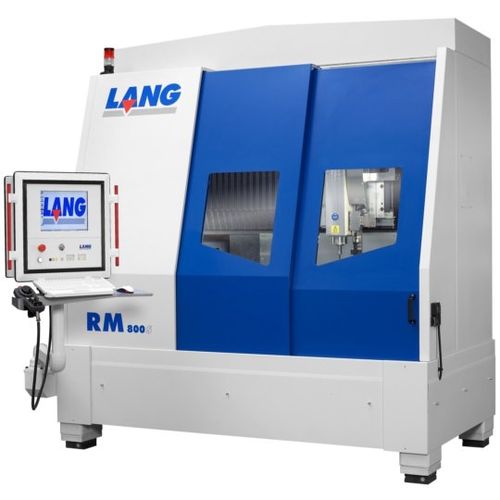

3-axis CNC milling machine RM 800S

verticalengravingcutting

The professional machine for cylinder processing! The RM 800S has been specially developed and designed for production of printing, cutting and embossing cylinders with a diameter from 40 up to 320 mm. The machine is characterised by a high flexibility with the selection of workpieces. The steplessly adjustable tail stock in X direction – counter support – permits the clamping of cylinders up to 820 mm between centers and therefore enables a treatment of the working range up to 720 mm length. The design of the machine allows to be loaded and unloaded with a crane. The professional... A granite portal construction, high precision guiding systems, as well as a lot of other equipments take care that no contour „looses it’s shape“. The machine is equipped with a 3-D output program LDRIVER of LANG, which enables a comfortable output of the milling pathes. With traversing speeds (advance and speed) in X and Z axis up to 30 m/min., a circular engraving device of max. 30 rpm/min. and an acceleration in X and Z axis of max. 10 m/s² a high economical machining is guaranteed. Options Camera system Oil mist aspiration Coolant supply with oil rotating and filter system Oil bin for wet processing
